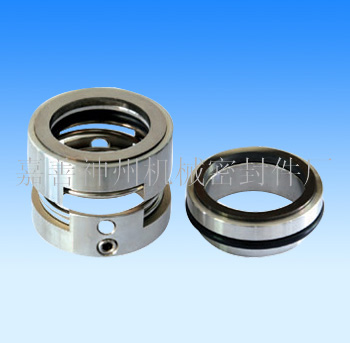

Products Name:106 U type mechanical seal

Products Details:Built in single end spring, unbalanced pull fork drive. The series is a single spring mechanical seal pump typical, the seal complies with DI24960, ISO3069 and GB6556, is a widely applicable standard non balanced mechanical seal, allowing the use of various materials and surface combination, to meet a wide range of industrial demand.

Operating parameters:
The pressure in the seal cavity: 0.06Mpa seal cavity temperature: -20 to 80 DEG C, line speed: less than 3000r/min medium: suitable for corrosive medium (impurity 5wt%)
