Products Name:152 WB2 type mechanical seal

Products Details:Single face / non balanced / arbitrary direction / PTFE bellows, bellows type for the series of tetrafluoroethylene, it adopts multi spring structure, the spring type WB2 protected PTFE cover, this type of mechanical seal is corrosion pump to one of the most widely.

Operating parameters:

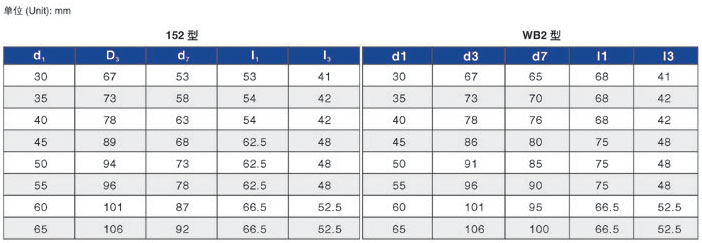

Specification: 30 ~ 65mm, pressure 0.5Mpa, temperature: -10 to 100 DEG C, line speed: less than 15m/s, axial momentum: + 0.5mm

Material composition:
Sealing face: silicon carbide, tungsten carbide, alumina, PTFE, auxiliary sealing: PTFE, metal component: 304 or 316L stainless steel.
