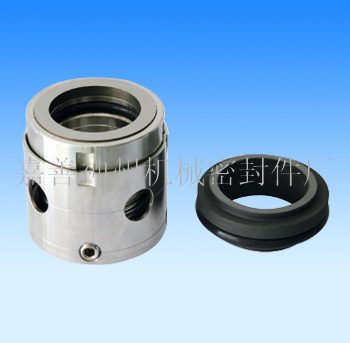

Products Name:GB 104 type mechanical seal

Products Details:Single ended / unbalanced / transmission sleeve drive / Arbitrary turn, this series is a widely used large spring typical mechanical seal, which allows various materials and end face combinations to meet a wide range of industrial needs.

Operating parameters:
Sealed medium: water, oil, organic solvent and medium corrosive liquid medium containing solid particles, the pressure in the seal cavity: less than 1 Mpa, speed: less than 3000r/min (line speed: 20m/Sec), a seal cavity temperature: the temperature of 0 DEG +180 DEG C (FKM) -20 to +90 DEG C (Ding Jing rubber). -30 to +120 DEG C (EPDM) -40 to +230 DEG C (PTFE), -40 to +230 DEG C (PTFE bag rubber), in accordance with JB/T 1472-94 standard
