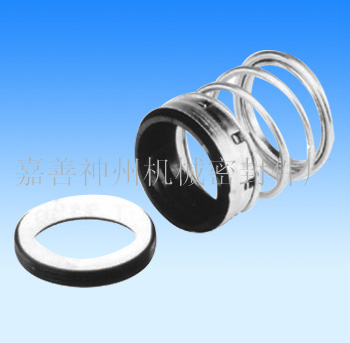

Products Name:Model SZT-100 mechanical seal

Products Details:

Operating parameters:

Seal chamber pressure: 5kg/cm2
Seal chamber temperature: Nor: -20℃~100℃(-4 oF~213 oF)
           Viton: -20℃~200℃(-4 oF~392 oF)
Linear velocity: 10m/Sec

Item

description

mat’l

1

cap gasket

NBR

2

mating ring

CERAMIC

3

seal face

CARBON

4

rubber diaphragm

NBR

5

drive ring

SUS316

6

retainer

SUS316

7

collar

SUS316

8

coil spring

SUS316

9

spring holder

SUS316
