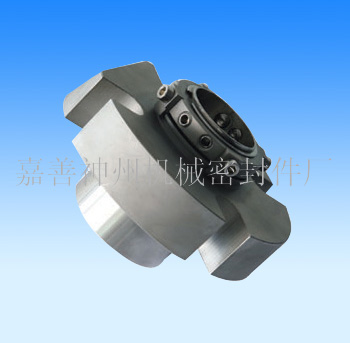

Products Name:SZ338 container type mechanical seal

Products Details:Single end / balance type / arbitrary rotation; SZ338 series seal is the most widely used mechanical seal in glass lined reactor. It allows various materials and end face combinations to meet the demand of different working conditions.

Operating parameters:
d1=25...100mm(1"...4")；t=-40...+220degree；(check O-ring temperature resistance)；P1.Vg see diagramm below；P3=25 bar;△p(p3-p1)...25bar；(1.5...2bar,7bar for buffer media with poor lubrication characteristics recommended)
